Senior Design
Rocket Stove and Thermoelectric Generator
Team Lead
2016-2017
Overview
As rocket stove team lead of my senior design project, I oversaw the project scope, delegation of work, and presentation of results. Furthermore, I coordinated the design and experimentation of an optimized rocket stove that maximized Venturi and gasification effects. Additionally, I helped ensure the successful integration of a system that safely converted heat energy to electrical power for charging a phone.
Rocket Stove
Goal:
Design and construct an optimized rocket stove utilizing gasification
​
Gasification: superheated, compressed smoke injected with air resulting in a secondary combustion
-
Provides a hotter, cleaner fuel burn
-
Improves efficiency by reducing fuel consumption
-
Similar principle to jet afterburners and biomass power plants
​
Design

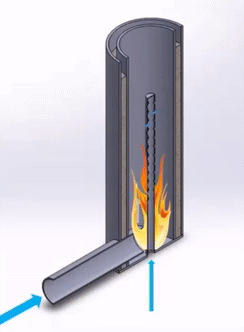

Gasification Tube
-
Intake hot, rising air through vertical, steel tube
-
Air injected through holes causing smoke to ignite
-
Adjustable injection height and mass flow rate to optimize gasification
​
​
Design
Constructed Rocket Stove
Gasification Result
​
Results
-
Increased efficiency by 10% (Measured fuel input with digital scale)
-
Increased heat output by 50% (Measured exhaust temperature with thermocouples)
​
Thermoelectric Generator Regulatory System
Goal:
Design and construct a method to safely harness exhaust heat from rocket stove and convert to electrical energy
Thermoelectric Generator (TEG)
Seebeck Effect: Voltage generated from a temperature differential
-
Heat rejected through a cold water reservoir
-
Heat applied through regulated exhaust heat (Avoid overheating electronics)
Constructed TEG
Regulatory System

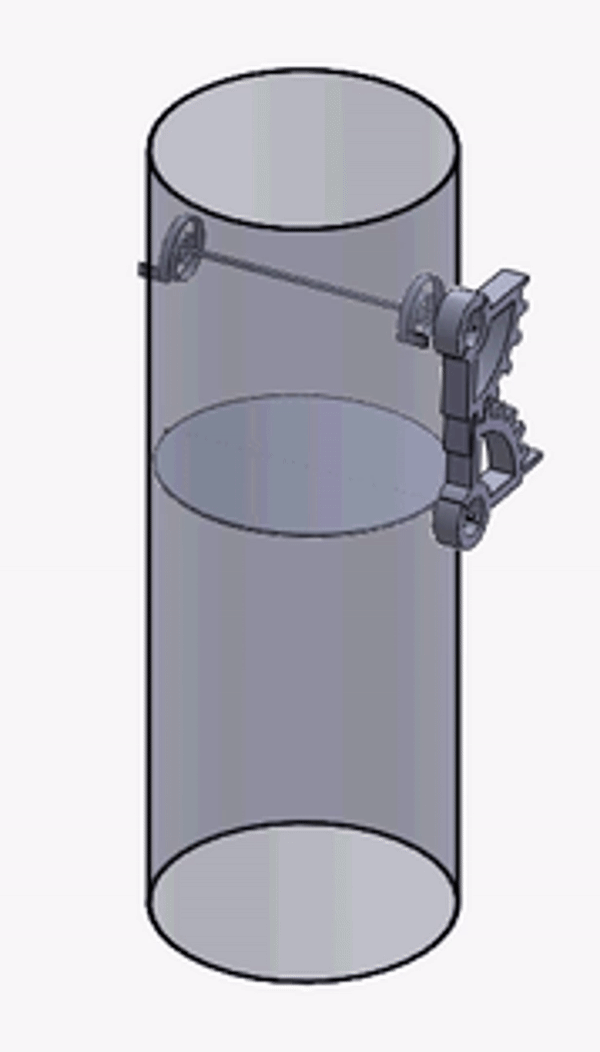

TEG Heat Applied Regulator Design
The applied heat was regulated by a pipe with bi-metallic stips controlling rotating flap.
Results
-
Obtained 2 Watt continuous charging on a phone
-
Successfully regulated temperature from exhaust heat
-
Potential for increase in electrical output by cycling water through reservoir
